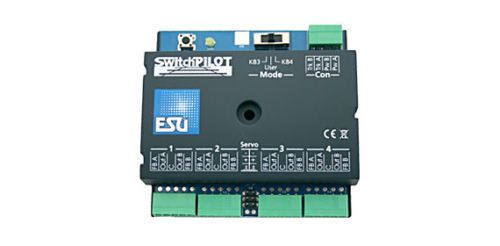

SwitchPilot 3 „Accessory decoder“, 2 x Servo.
It is a robust multi protocol switch and accessory decoder for controlling up to 4 solenoid accessories (e.g. points) or 8 loads such uncoupling ramps or incandescent lamps (e.g. street lighting, lighting of buildings or points). Due to its intelligent software it can be operated with either DCC or Motorola®.
Operational modes: NMRA/DCC „Accessory decoder“ compatible. Motorola® with up to 127 addresses. K83 compatible. Powered either by command staton or separately DC - or AC source (transformer) up to 18V AC.
Transistor outputs: 8 Transistor outputs, 1.5A (2.0A) load per output , grouped by 4 double outputs. Outputs short circuit proof and protected against overlad. Selectable switch pulse length from 0.1s to 1.0 s (or continous output). Flashing or cross fading also available.
Servo Control: Controls up to 2 RC-Servos (Graupner® JR® or Futaba® compatible), 1.0ms to 2.0mS pulses, positive. Separately adjustuble lever spped and end positions.
Feedback: 8 feedback inputs, detects actual position of the switch points. Display on ECoS screen. RailCom® transmitter for sending back the data to the command station
Dimensions: 86mm x 86mm x 25mm (3.39 x 3.39 x 0.98 inch)
Included in delivery: SwitchPilot 51820, detailed instruction manual
